Pile LV

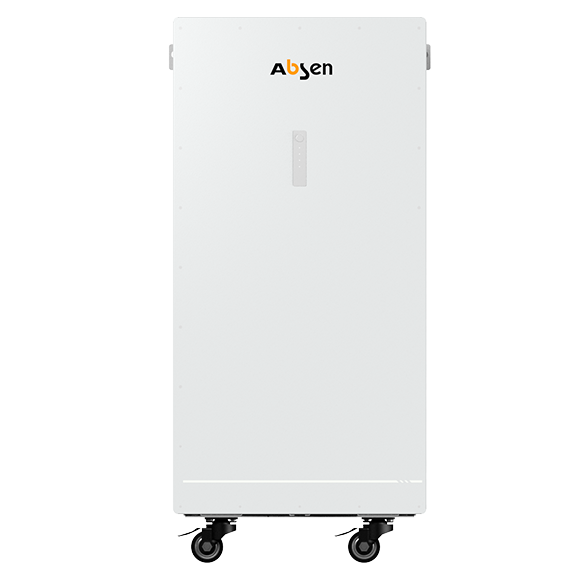

Low-Voltage Stackable Residential Battery
Low-Voltage Stackable Residential Battery
Low-voltage stackable residential battery features a low-voltage battery pack that can store electricity converted from renewable energy sources such as solar and wind power for residential use. Compared with high-voltage stackable residential battery, low-voltage stackable residential battery offers lower costs and broader application, suitable for setups with a low power output, such as a regular household.
Low-Voltage Stackable Residential Battery
Low Voltage Battery Pack
Low Cost
Wide Applications
Benefits
Module Design
Supporting 1~4
modules
Safe&Reliable
Lithium Iron
Phosphate(LFP) battery
Perfect Compatibility
Compatible with branded inverters
Smart and Easy Operation
Supporting RS485/CAN
remote monitoring
Parameters
Model PX-5.1-L
Battery Module 51.2V  100Ah
Nominal Capacity 5.12KWh
Rated voltage 51.2V
Dimension (W * D* H) 600*210*440
Weight 57.2Kg
Mounting type Stacking type
IP Grade IP65
Battery type LiFePO4


ModelPX-10.2-L
Battery Module51.2V  100Ah
Nominal Capacity10.24KWh
Rated voltage51.2V
Dimension (W * D* H)600*210*740
Weight106.9Kg
Mounting typeStacking type
IP GradeIP65
Battery typeLiFePO4


ModelPX-15.3-L
Battery Module51.2V  100Ah
Nominal Capacity15.36KWh
Rated voltage51.2V
Dimension (W * D* H)600*210*1040
Weight156.6Kg
Mounting typeStacking type
IP GradeIP65
Battery typeLiFePO4


ModelPX-20.4-L
Battery Module51.2V  100Ah
Nominal Capacity20.48KWh
Rated voltage51.2V
Dimension (W * D* H)600*210*1340
Weight206.3Kg
Mounting typeStacking type
IP GradeIP65
Battery typeLiFePO4
